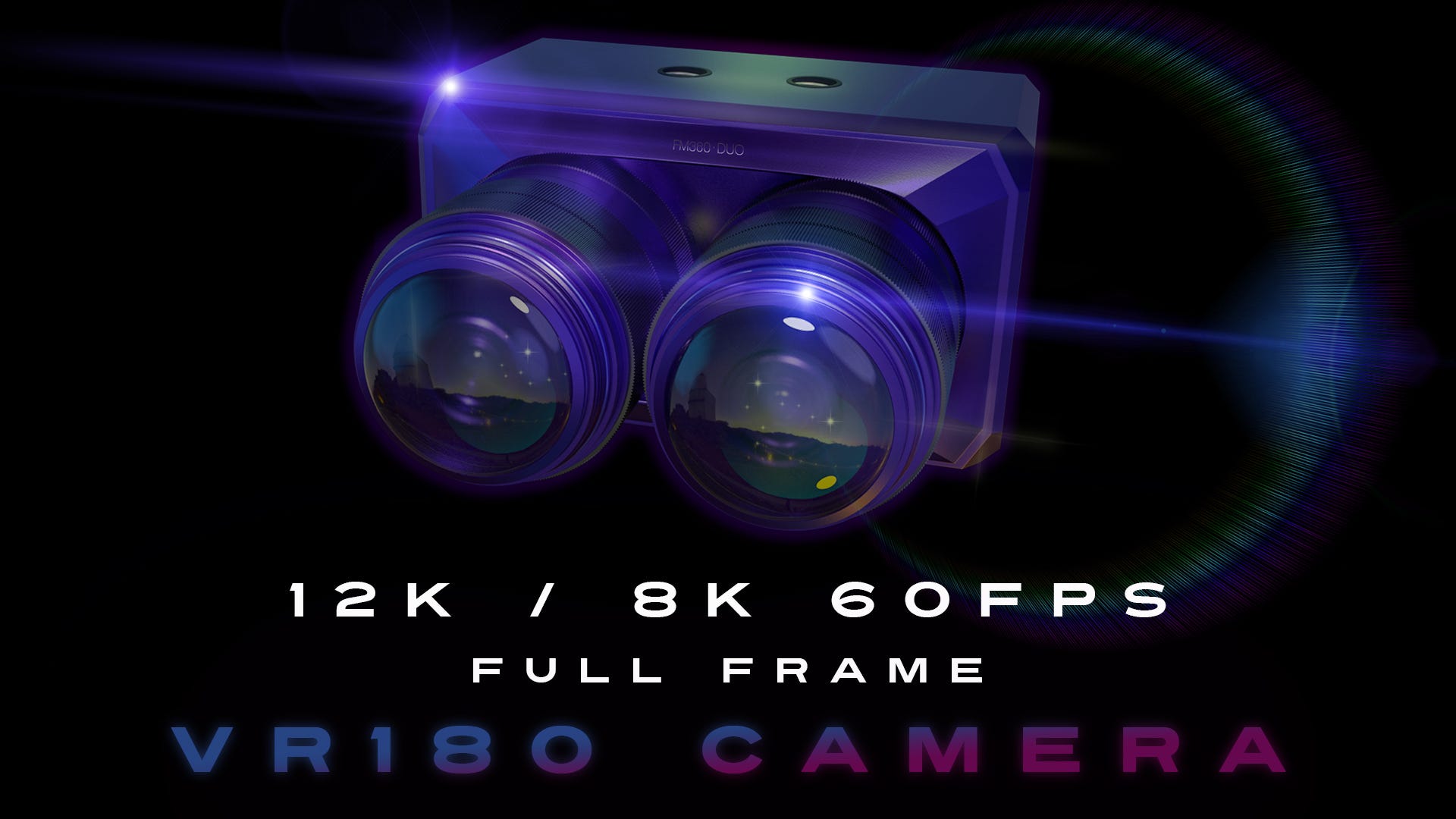

🔴New professional VR180 camera for Oculus Quest 2! 12K 30FPS and 8K 60FPS with TWO full-frame sensors (36mm x 24mm), sLog/sLog2 + HDR, 65mm IPD with SSDs external storage, and VR180 Livestream ready! This is a whole lot of craziness! Let’s watch the camera trailer together, react together, and analyze every detail:
SPECS
======================
米七科技 M7 180 3D / FM DUO SPECS
======================
CAMERA
Sensor: Dual CMOS 135 Full-frame sensors (Same as Canon R5)
Sensor Size: 36mm(H) X 24mm(V)
Effective Pixels: 3600MP
Dynamic Range: 16 Stops
Lens: X2 180 Custom made Fisheye Lenses
Gyro: Built-in
SETTINGS
ISO: Auto/Manual (400–125000)
Shutter Speed: Auto/Manual (1s — 1/8000s)
WB: Auto/Manual (2300K — 7500K)
Adjustments: Brightness/Contrast/Saturation/Sharpness
Image Profile: Liner/Rec.709/HLG/ReinhardHDR/sLog/sLog2
BODY
Material: Aviation-grade ALuminum Alloy
Weight: 1KG
Dimensions (W X H X D): 160mm x 150mm x 83mm
Operation Environment
Storage Temperature: -20 C — 70 C
Operation Temperature: -10 C — 45 C
VIDEO
Resolution: 12000 x 6000 @ 30fps (after stitching) / 8192 x 4096 @ 60fps (after stitching) / 8192 x 4096 30fps (after stitching) / 6000 x 6000 @30fps (per lens, stored separately) / 4096 x 4096 @60fps (per lens, stored separately)
Highest Bitrate: 400Mbps
Color Bit-depth: 8bit/10bit
Video Encoder: H.265 main 10 profile
Audio Profile: AAC (22.05KHz 16bit)
